Product Detail

Model No.: XHJP67-180

Production Capacity: 500sets/month

Delivery Date: 30days after place order

applied in: all sorts of ship decks

Nominal speed: 18kn

Difference of working pressures: 11.8mpa

Means of Transport: Ocean,Land,Air

Packing: standard export packing

brand name: xinghong

the steel wire load rang of this series: 10~300kn

Steel wire diameter: 36mm

Total displacement: 36256ml/r

1.small buck
2.light weight
3.high mechanical efficiency
4.big startup torque
5.broad rotation speed range
6.perfect stability&small noise

36256ml/r marine capstan for steel wire diameter36mm is a new product of our company and it's type of high technology product researched and developed by our company though many years experience. The capstan is composed with high efficiency motor(manufacture by ourself ), planetary reducer, capstan head, shell cover and distributor with two way balance valves.

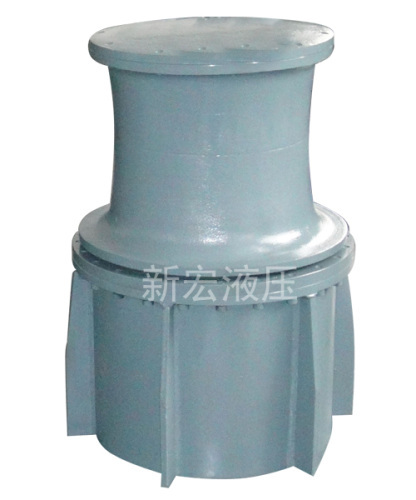

Picture of 36256ml/r marine capstan for steel wire diameter 36mm:

36256ml/r marine capstan for steel wire diameter 36mm parameters:

model	System load(kn)	Nominal speed(kn)	Steel wire diameter(mm)	Difference of working pressures(mpa)	Total displacement (ml/r)	Transmission ratio	Model of Hydraulic motor
XHJP67-180	180	18	36	11.8	36256	22	XHM16-1600D90F4802
XHJP67-180	190	16	36	12.3	36256	22	XHM16-1600D90F4802
XHJP67-18	200	16	36	13.2	36256	22	XHM16-1600D90F4802
